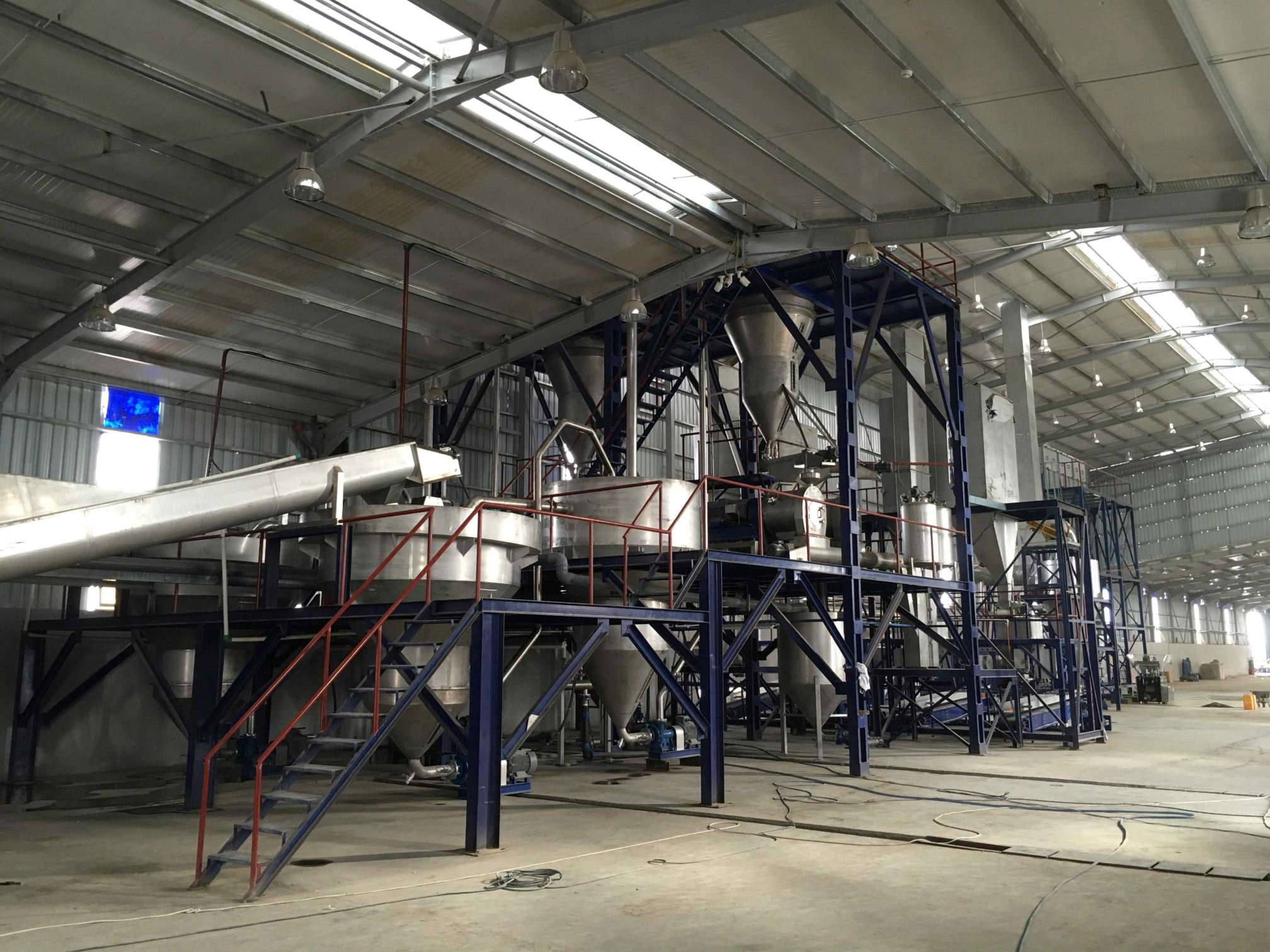

CYCLONE SYSTEM

Cyclone system is used for washing processes. This system has two washing cyclones. These are 2 kinds of cyclones pre-washing and upper cyclone. Our cyclone system is a system which includes a system cleaning system, liquid-solid separation system, solid transfer pump, transport pipeline equipment, and construction systems.

We have designed the cyclone system as a complex structure to remove impurities in salt. We install this system in accordance with the customer's facility and ensure the operation of the system.

TYPES OF OUR CYCLONE SYSTEM

Cyclone system consists of 4 parts to be hydrocyclone, product blower, pipe and mounting system, and construction. Our cyclone system and features are described below:

HYDROCYCLONE

Hydrocyclone is used for purpose of separating liquid-solid and reducing water passing to main cyclone. Hydrocyclone is equipped with chromium-nickel valves in areas where the product inlet and outlet is provided. All surfaces that come into contact with salt are made of stainless steel to prevent wear.

*The technical details of the produced Cylone System are listed.
Cyclone Type: 2 Type
Material: AISI 304 Stainlerss Steell
Material Thickness: 3 mm
Upper Diameter: 2300 mm

PRODUCT BLOWER

Product pump is used to circulate washing water and to cool system. Inductor blower is used for cooling operation, while vortex pump is used for product circulation. It is manufactured from stainless steel.

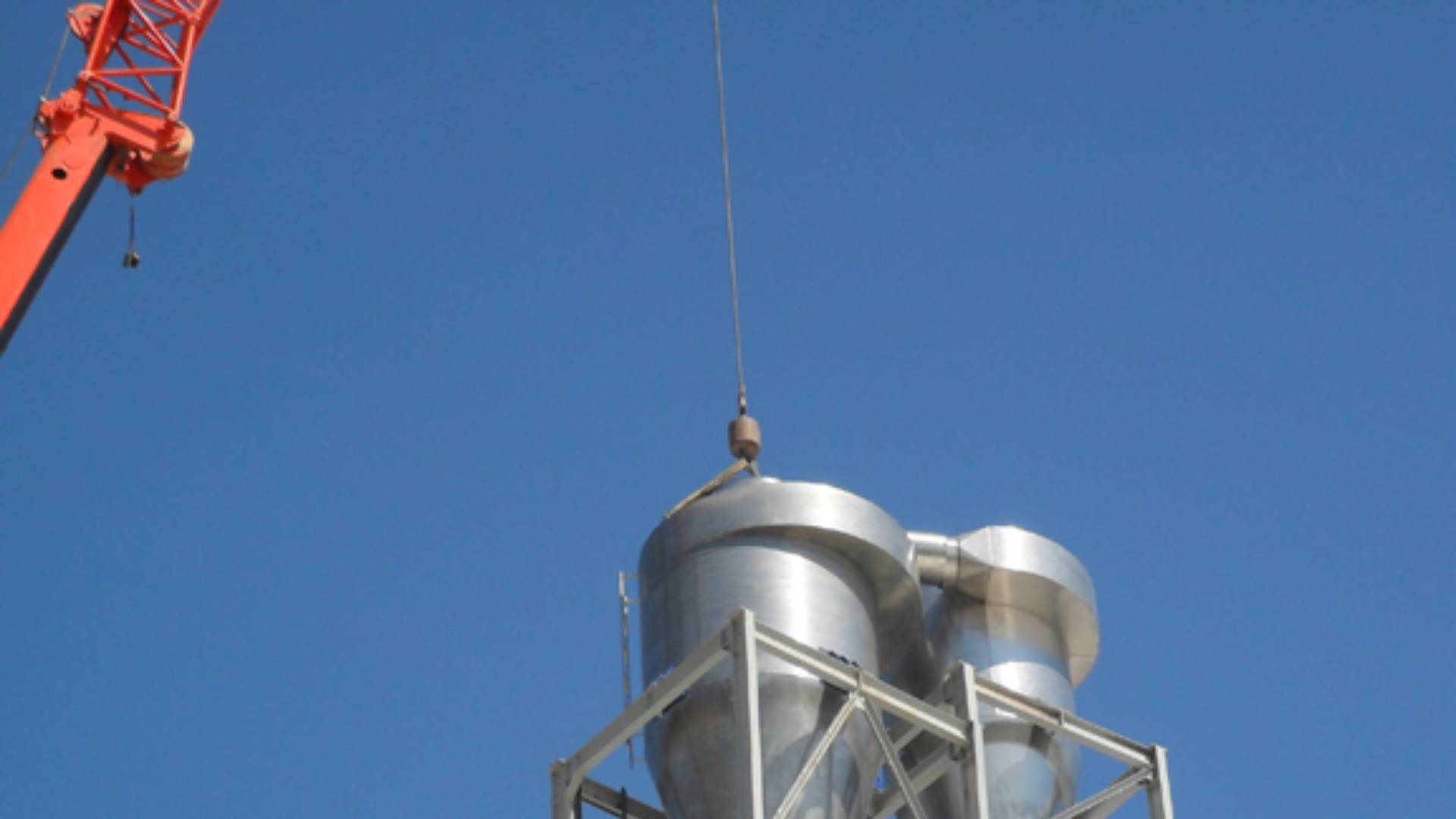

PIPE AND MOUNTING SYSTEM

Equipment in a system is used to ensure transport of salt. These pipes are made of rust-resistant steel. Pipes are welded according to welding standards. All equipment used to install pipes is supplied with cyclone system.

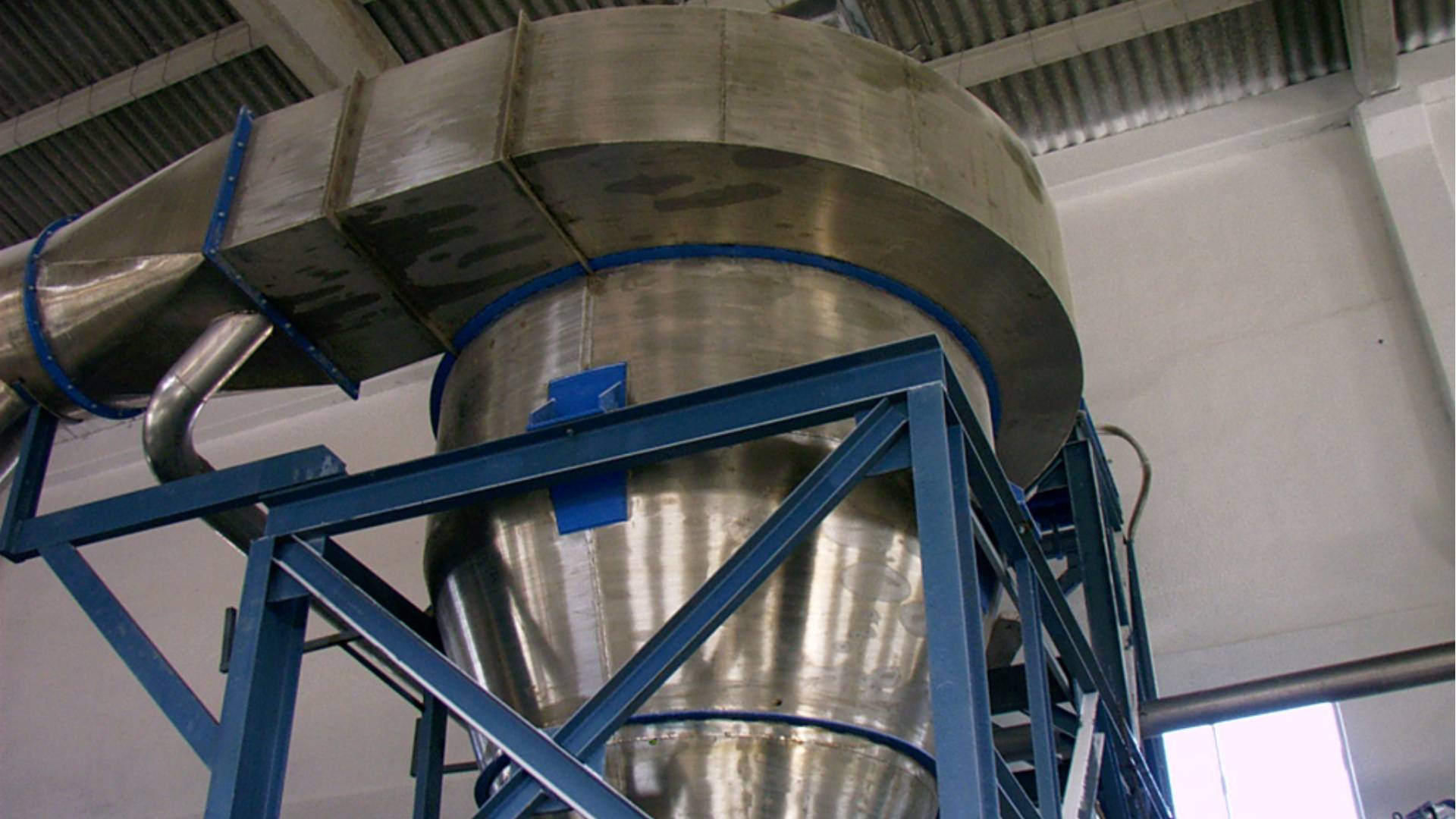

CONSTRUCTION

Construction is designed specifically for each plant in order to fit the entire cyclone system in a durable structure. All equipment connected to construction works in harmony with each other.

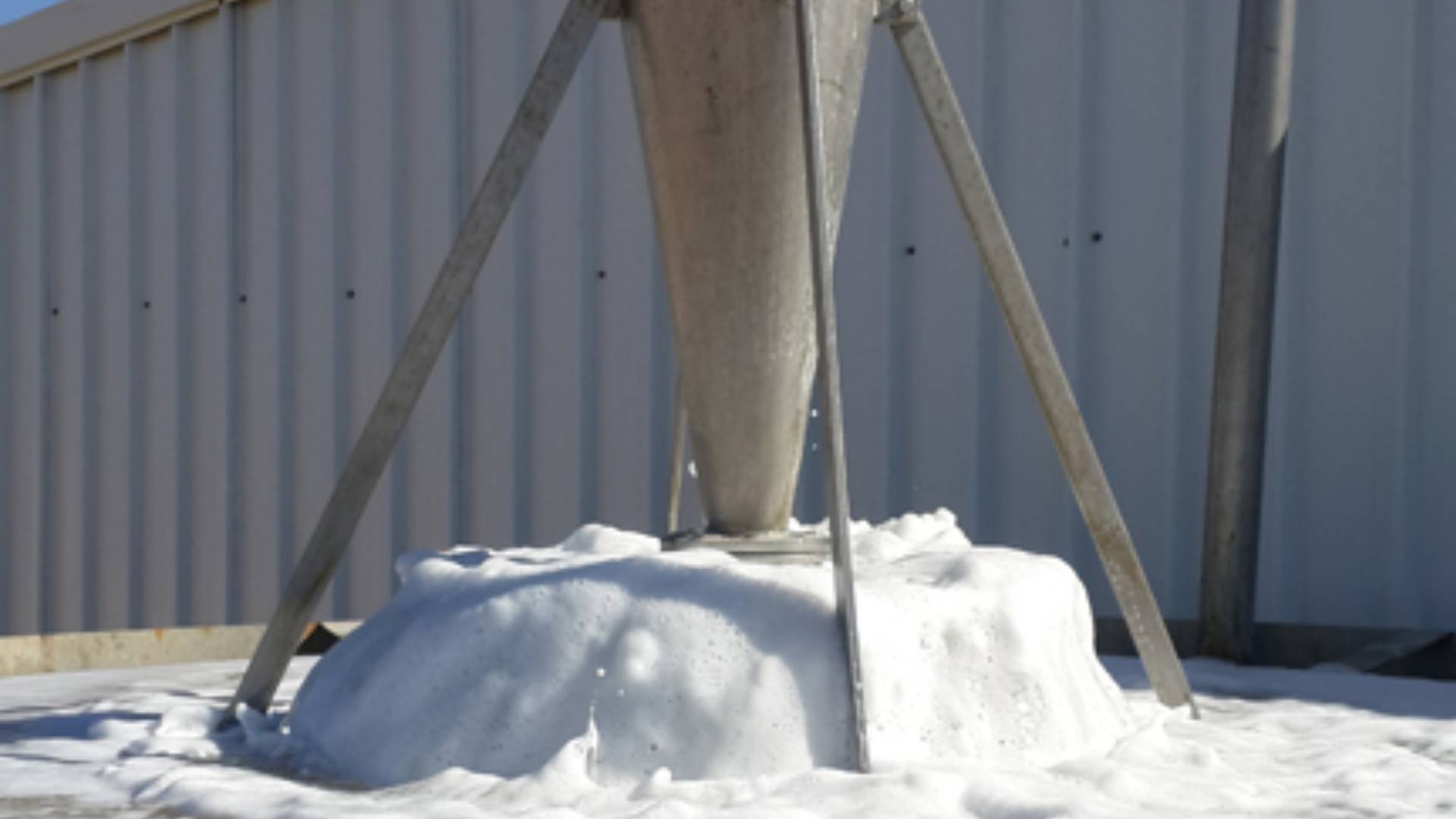

CYCLONE SYSTEM | PHOTOS

All pictures and photos shown are for illustration purpose only. Actual products may vary due to product enhancements.
